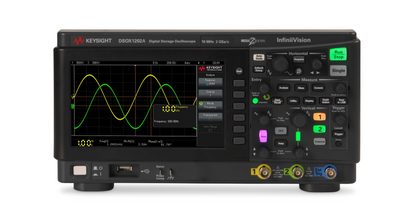

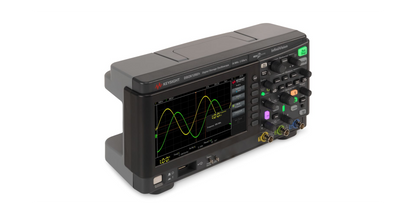

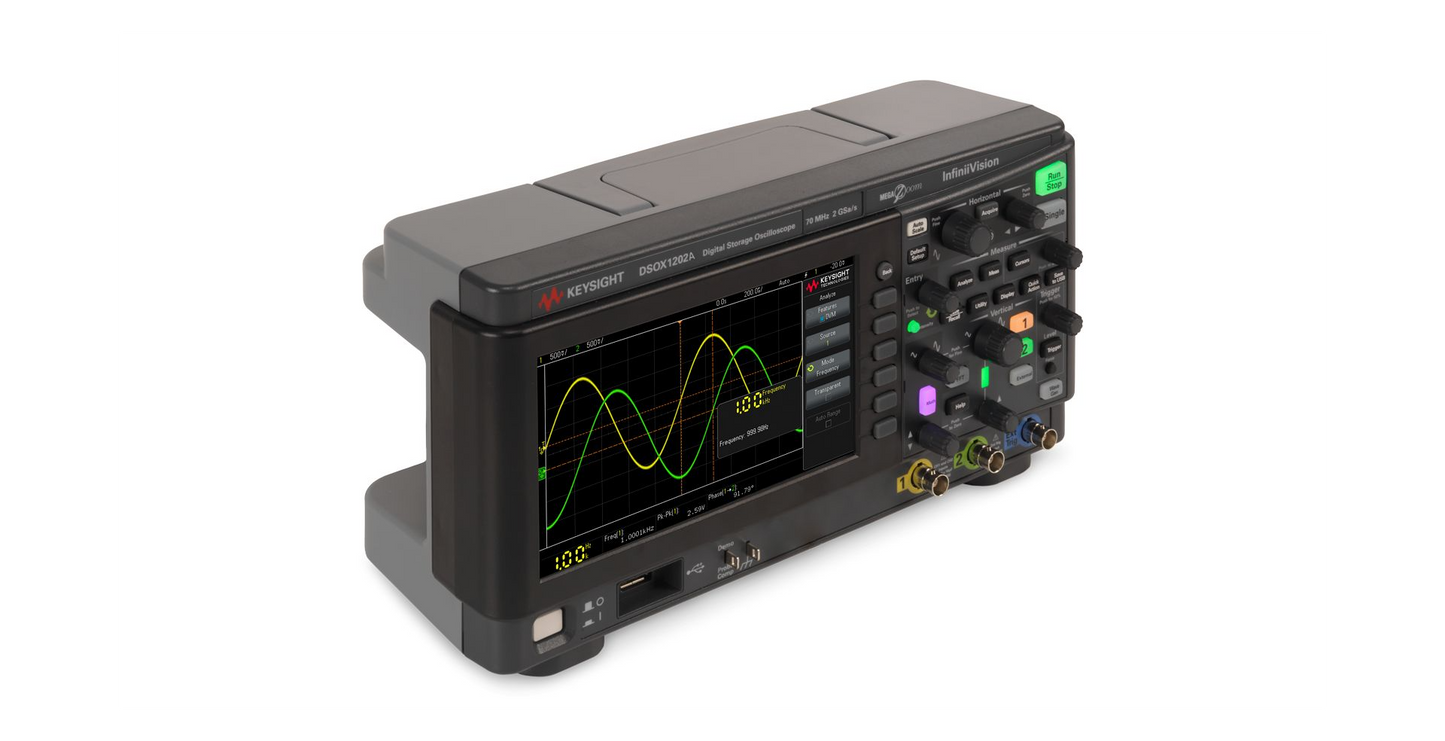

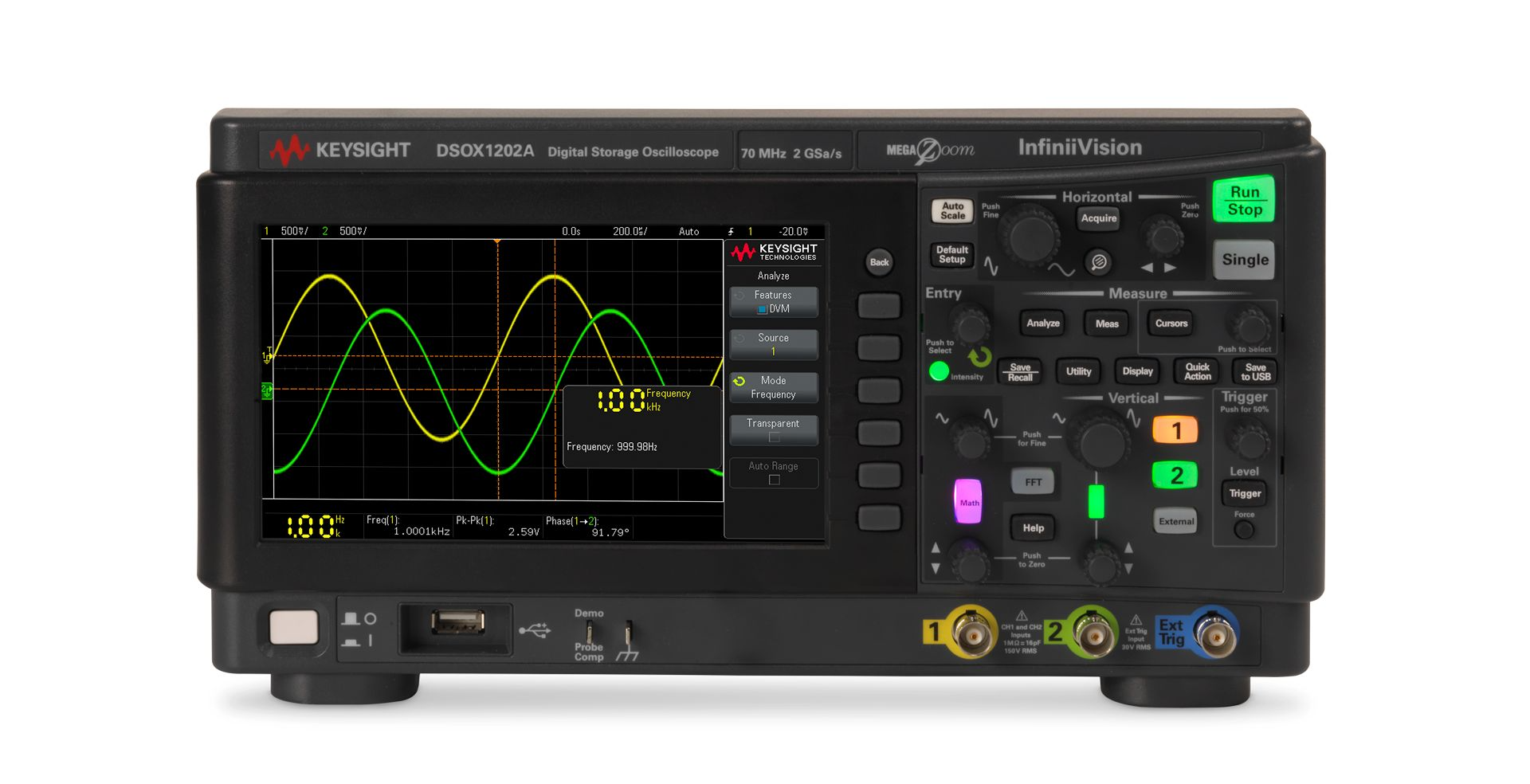

Digital Oscilloscope, InfiniiVision 1202X Series, 2 Analogue, 1 Ext Trigger, 70 MHz, 2 GSPS

The Keysight DSOX1202A model is included within the InfiniiVision 1000 X-series, a collection of affordable oscilloscopes that maintain high-quality standards. This oscilloscope is perfect for educational or design labs with limited available bench space and budget. Its integrated function generator offers a variety of waveform outputs, including sine, square, ramp, pulse, DC, and noise. Plus, you can apply modulation to the signal using customizable AM, FM, and FSK options. The built-in help feature is also included for added convenience.

• 7inch TFT LCD WVGA display
• External trigger : front panel input (displayable as a 3rd digital channel)
• 200,000 waveforms per second waveform update rate
• I²C, SPI, UART/RS-232, CAN, LIN standard serial protocol analysis
• Features segmented memory
• Integrated digital voltmeter
• Features frequency counter
• Add, subtract, multiply, divide, FFT (magnitude and phase), low pass filter waveform math
• Automatic measurements as 14 amplitude, 14 timing and 4 pulse count measurements
• USB 2.0 (host and device), LAN connectivity

Included

DSO, Standard 3-year warranty (90 days for unserialized accessories), 5-year calibration period with certificate provided, Standard secure erase, Two N2140A standard passive probes, Built-in help in multiple languages, Localized power cord.
