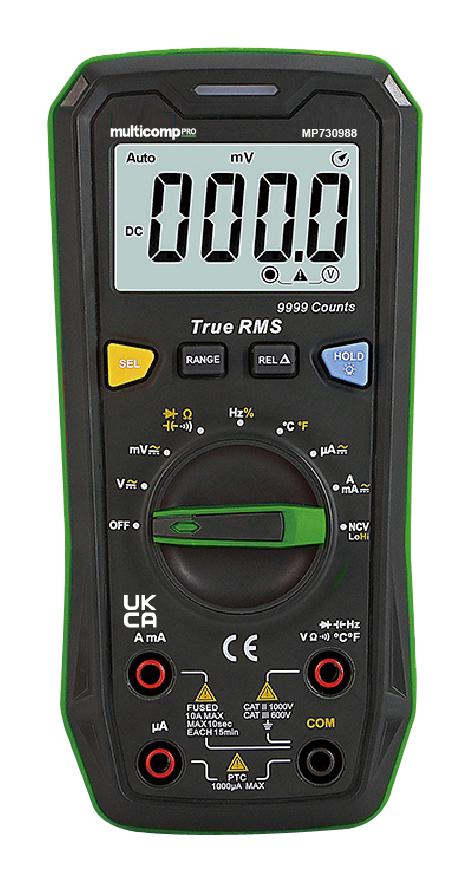

MP730988 Multimeter

MP730988 is a 9999-count true RMS digital multimeter with high resolution, auto range and new intelligent ADC chip. Designed according to CAT II 1000V/CAT Ill 600V, the meter comes with overvoltage and overcurrent alarms, and a false detection protector for 6KV electric shock and high voltages.

• Unique appearance, ergonomic design, compact structure.
• 9999-count display, true RMS measurement, and fast ADC (3 times/s).
• Full-featured false detection protection for up to 1 000V surge, and overvoltage/overcurrent alarm.
• Extended measuring range, especially for capacitance (compared with similar products), the ,s;9.999mF response time is within 6s.
• Optimized NCV function: EFHi mode to distinguish neutral and live wires, EFLo mode for low electric fields, and audio/visual alarm.
• Recoverable and anti-burning protector is built into the current input terminal.
• Measurement of flame sensor of heating device can be performed at uA position.
• Current (AC/DC) mode memory function.
• Low power consumption (general: about 2mA; sleep state:<lt/> 30μA ) to effectively extend the battery life to 500 hours.

Application

Test & Measurement, Electronics Service, Industrial & Manufacturing, Automotive, Electrical

Contents

x1 MP730988 Digital Multimeter; x1 User Manual; x1 Pair Test Leads; x1 Temperature Probe
