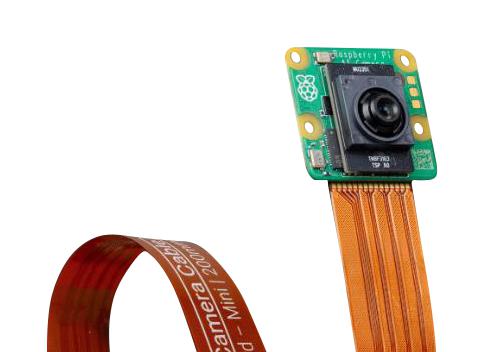

Pi AI Camera 12MP

The Pi AI Camera 12MP features the Sony IMX500 sensor with built-in AI processing, enabling Raspberry Pi users to create advanced vision projects without extra hardware. It integrates seamlessly with Raspberry Pi models and software libraries, making it ideal for hobbyists who want powerful image recognition and analysis in a compact camera module.

• Scale up with AITRIOS
• Manual adjustable focus and integrated IR cut filter
• Horizontal/vertical: 4056 × 3040 pixels, sensor size: 7.857mm (type 1/2.3), pixel size: 1.55×1.55μm
• 4.74mm focal length and F1.79 focal ratio
• 66 ±3° horizontal field of view and 52.3 ±3° vertical field of view
• Input data type: 'int8' or 'uint8' and input tensor maximum size: 640(H) × 640(V)
• Output: Image (Bayer RAW10), ISP output (YUV/RGB), ROI, metadata
• Memory size: 8388480 bytes for firmware, network weight file and working memory
• 200mm Ribbon cable length and 15 × 1 mm FPC or 22 × 0.5 mm FPC cable connector
• Dimensions is 25 × 24 × 11.9mm and operating temperature range from 0°C to 50°C
