Build Your Own Piano - A Mesmerizing DIY Electronics Project
Transform light into music with this innovative photo-electric piano kit! This isn't just another soldering project. It's a conversation-starting musical instrument that responds to your touch through invisible light beams instead of traditional strings.
Why You'll Love This Project
Perfect for makers, electronics enthusiasts, and anyone looking to combine music with technology. This laser harp creates an impressive visual and audio experience: simply interrupt the light beams with your hand, and watch as corresponding LEDs illuminate while the buzzer plays different musical notes. It's the same technology used in science museums to inspire curiosity in music and electronics!
What Makes It Special
- Stringless Design: Uses 7 light beams instead of traditional strings, block the light to create music
- Visual Feedback: 8 LED lights illuminate as you play, creating a stunning light show
- Educational Value: Learn about photo-resistors, microcontrollers, and audio frequency generation
- Complete Learning Experience: Hands-on soldering practice combined with programming concepts
How It Works
The kit uses photo-resistors and LED light beams to detect when you "push" a key. When you interrupt a light beam, the microcontroller reads the change and triggers the corresponding musical note through the buzzer while lighting up the matching LED. Each of the 7 beams produces a different pitch, allowing you to play melodies just like a traditional Piano!
Technical Specifications
- Power Supply: DC 4.5V-5.5V (USB powered via included cable)
- LED Lights: 8 x 3mm white LEDs + 8 x 3mm blue mist LEDs
- Light Sensors: 7 x 5516 photo-resistors
- Microcontroller: STC89C51/C52/C54 (pre-programmed, randomly selected)
- PCB Dimensions: 8.9cm × 6.0cm
- Audio Output: Passive buzzer (20Hz-20kHz range)
- Power Connector: DC-005 jack with USB to DC-005 cable included

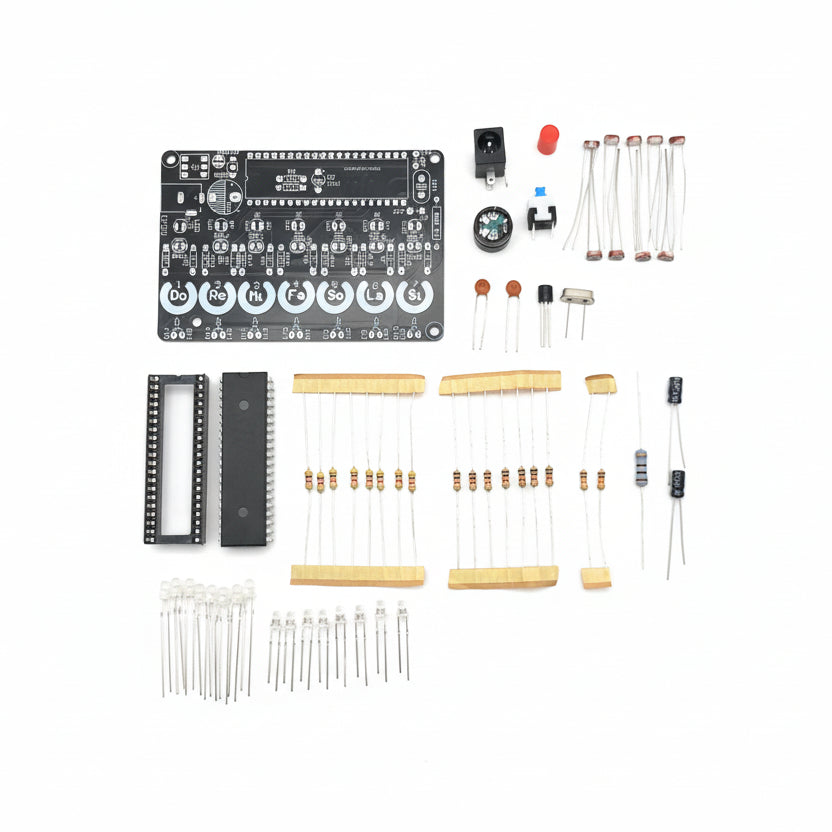

Complete Kit Includes
- 1 × PCB (Printed Circuit Board)
- 1 × Pre-programmed STC89C51/C52/C54 Microcontroller
- 7 × 1kΩ Resistors
- 6 × 4.7kΩ Resistors
- 2 × 10kΩ Resistors
- 1 × 1W 100Ω Resistor
- 2 × 22pF Ceramic Capacitors
- 2 × 10µF 25V Electrolytic Capacitors
- 1 × 12MHz Crystal Oscillator
- 1 × 8550 Transistor
- 1 × Passive Buzzer
- 1 × 8×8 Self-locking Switch
- 1 × DC-005 Socket
- 1 × USB to DC-005 Cable
- 8 × 3mm White Hair LEDs
- 8 × 3mm Blue Mist LEDs
- 7 × 5516 Photo-resistors
- 1 × 40-pin IC Socket
- 15cm × 4mm Heat Shrink Tubing
Skill Level
Intermediate - Requires basic soldering skills and understanding of electronic components. Perfect for expanding your electronics knowledge!
Note: This is a DIY kit requiring assembly. Soldering iron and basic tools not included.
